Description

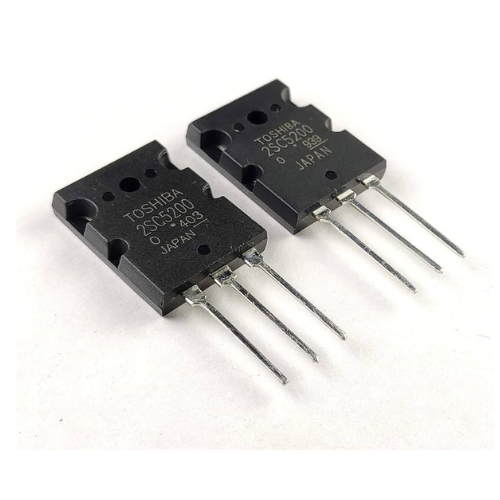

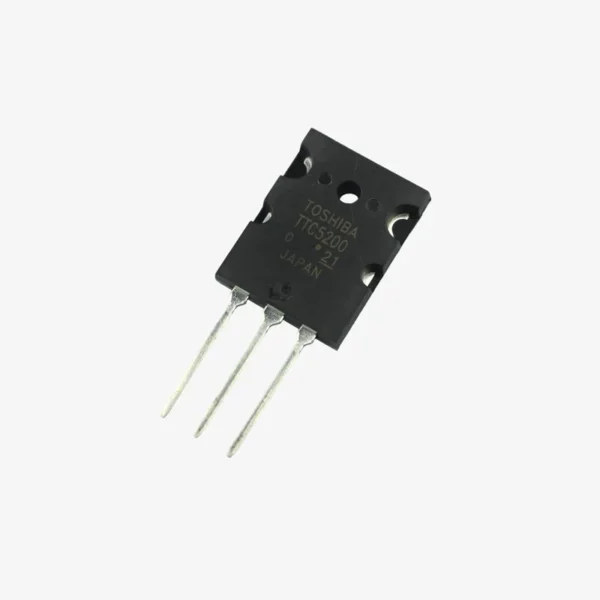

2SC5200 NPN Transistor with 1.5V Base and 15V Collector Current is type of bipolar transistors consisting of a layer of P-doped semiconductor (base) between two N-doped layers. A small current entering the base is amplified to produce a large collector and emitter current.
They are Used in Mobile Phones, Industrial Control, Television and Flip-flops, High Frequency Application Such as Radio Frequency Audio Circuit.
Features:-
- • High Fidelity Audio Frequency Amplifier Output.
- • Low Harmonic Distortion, Large Current Capability and High Transition Frequency.
- • Use in 100W High Fidelity Audio Amplifier’s Output Stage.
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 230V |
| Collector-Emitter Voltage (VCEO) | 230V |
| Emitter-Base Voltage (VEBO) | 5V |
| Continuous Collector Current (IC) | 15A |
| Base Current (IB) | 1.5A |
| Transition Frequency (fT) | 30MHz |
| DC Current Gain (hFE) | 55-160 |
| Operating Temperature Range | -55 – 150°C |
| Power Dissipation (PD) | 150W |
