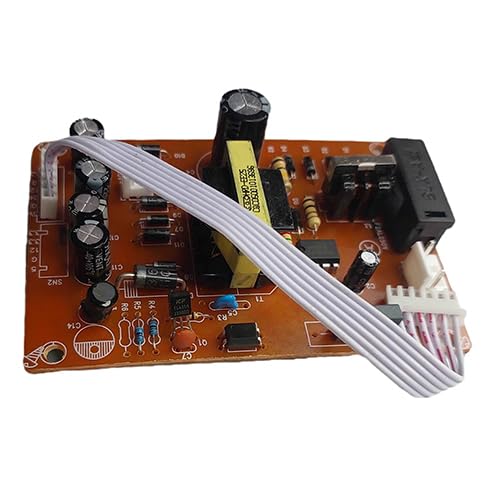

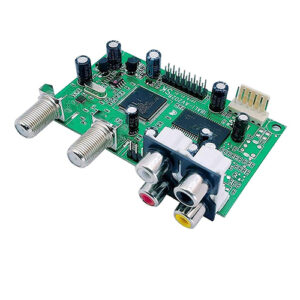

d2h Power Supply Circuit Board

A Direct-to-Home (D2H) set-top box power supply circuit board is typically a Switched-Mode Power Supply (SMPS) designed to convert incoming AC mains voltage (220V–240V) into stable, low-voltage DC rails required by the set-top box’s motherboard (such as the main processor, tuner, memory, and front panel display).

Key Sections and Components

1. AC Input & Protection Stage

   • Fuse: Protects the circuit from overcurrent and short circuits.

   • MOV (Metal Oxide Varistor): Safeguards against voltage spikes and power surges.

   • EMI Filter (Inductor & Capacitor): Reduces electromagnetic interference coming from or going into the mains supply.

2. Rectification & Filtering Stage

   • Bridge Rectifier: Converts incoming alternating current (AC) into pulsating direct current (DC).

   • Main Filter Capacitor: A high-voltage electrolytic capacitor that smooths the pulsating DC into a stable high-voltage DC bus.

3. Switching & Regulation Stage

   • Switching MOSFET / Power IC: Rapidly chops the high-voltage DC to create high-frequency pulses.

   • High-Frequency Transformer: Steps down the high voltage to safer, lower AC voltages while providing electrical isolation between the mains and the low-voltage output.

   • Optocoupler & TL431: Monitors the output voltage and sends feedback to the primary side to regulate and stabilize the output against load changes.

4. Secondary Output Stage

   • Fast Recovery Diodes / Schottky Diodes: Rectify the high-frequency AC from the secondary winding of the transformer into clean DC.

   • Output Filter Capacitors & Inductors: Remove remaining high-frequency ripple to deliver smooth DC power.

Typical Output Voltages

Most standard definition (SD) and high definition (HD) set-top box power supply boards provide specific multi-voltage outputs to the mainboard:

• +12V: Powers the LNB (Low-Noise Block downconverter) via the coaxial cable for the satellite dish, and powers audio amplifier circuits or cooling fans if present.

• +5V: Powers USB ports, general logic components, and peripheral ICs.

• +3.3V: Powers the main processor (SoC), flash memory, and RAM.

• +24V / 5V (Alternate rails): Found on some models to drive specific display panels or tuner sub-circuits.
