Toshiba 2SA1943 Transistor, PNP, -15A
Original price was: ₹205.00.₹140.00Current price is: ₹140.00. Save ₹65.00 (32%)
| Collector Base Voltage |
230 V
|
| Collector Emitter Voltage |
230 V
|
| Emitter Base Voltage |
-5 V
|
| Collector Current |
-15 V
|
| Collector Dissipation |
150 W
|
| Current Gain |
55 – 160
|
| Transition Frequency |
30 Hz
|
| Minimum Order Quantity |
50
|
Power Amplifier Applications:
- High collector voltage VCEO = −230 V (min)
- Complementary to 2SC5200
- Recommended for 100-W high-fidelity audio frequency amplifier output stage.
The Toshiba 2SA1943 is a high-power, high-performance PNP transistor commonly used in audio amplifier circuits. Below are its detailed specifications:
Thank you for reading this post, don't forget to subscribe!Specifications:
- Type: PNP Bipolar Junction Transistor (BJT)
- Maximum Collector-Emitter Voltage (Vce): -230V
- Maximum Collector Current (Ic): -15A
- Power Dissipation (Pc): 150W
- DC Current Gain (hFE): Typically 55-160 (depends on operating conditions)
- Base-Emitter Voltage (Vbe): -1.5V (maximum)
- Transition Frequency (fT): 30 MHz
- Package Type: TO-3P
- Operating Temperature Range: -55°C to 150°C
Features:
- High power dissipation (150W)
- Excellent linearity, making it suitable for audio amplification
- High collector current capability (-15A), suitable for demanding applications
- Complementary to the 2SC5200 (NPN transistor), often used together in push-pull amplifier designs
Applications:
- High-power audio amplifiers
- Motor control circuits
- General-purpose high-power switching
- Signal processing in industrial systems
Notes:
- Ensure proper heat sinking due to high power dissipation.
- Toshiba’s 2SA1943 is a popular choice for high-quality audio amplifier designs due to its low distortion and reliability.
Loading...
-
18% OFF
Redmi A4 5G (Sparkle Purple, 4GB RAM, 64GB Storage) | Global Debut SD 4s Gen 2 | Segment Largest 6.88in 120Hz | 50MP Dual Camera | 18W Fast Charging
Original price was: ₹10,999.00.₹8,999.00Current price is: ₹8,999.00.Save ₹2,000.00 (18%)
Add to cart Buy NowBrand Redmi Operating System Android 14 RAM Memory Installed Size 4 GB CPU Model Others CPU Speed 2.0, 1.8 GHz What is in the box?
- Power Adapter
- USB Cable
- SIM Tray Ejector
-
67% OFF
SanDisk Cruzer Blade 128GB USB 2.0 Flash Drive (Red) – Compact & Reliable Pendrive
Original price was: ₹2,200.00.₹729.00Current price is: ₹729.00.Save ₹1,471.00 (67%)
Add to cart Buy NowHighlights-
Highlights
- USB 2.0|128 GB
- Plastic
- For Desktop Computer, Laptop, Television
- Color:Red, Black
Seller TBL Online 4.3
-
7 Days Service Center Replacement/Repair
-
5 Year Warranty
-
-
61% OFF
ZEBRONICS Zeb-Astra 20 Wireless BT v5.0 Portable Speaker with 10W RMS Output
Original price was: ₹2,299.00.₹899.00Current price is: ₹899.00.Save ₹1,400.00 (61%)
Add to cart Buy NowBrand ZEBRONICS Speaker Maximum Output Power 10 Watts Frequency Response 20 KHz Connectivity Technology Bluetooth, Auxiliary, USB, TF Card Audio Output Mode Surround What is in the box?
- 1 unit –speaker
- 1 unit — Charging Cable
- 1 unit — user manual
-
27% OFF
UBON CH-28 67W Warrior Charge fast & Safe Charging
Original price was: ₹749.00.₹549.00Current price is: ₹549.00.Save ₹200.00 (27%)
Add to cart Buy Now“Power up your devices with the UBON CH-28 67W Warrior Charge! Experience ultra-fast and safe charging with advanced protection features. Designed for smartphones, tablets, and more, this high-speed charger ensures reliable performance anytime, anywhere.”
-
43% OFF
UBON WR-501 1Mtr, 65W High-Speed Charging Cable with Type-C
Original price was: ₹499.00.₹285.00Current price is: ₹285.00.Save ₹214.00 (43%)
Add to cart Buy NowSupports Multiple Charging Protocols:* The 65W WR-501 cable is designed to be compatible with a wide range of fast-charging standards including VOOC, Quick Charge…
-
39% OFF
UBON Fast Charger 25W CH43 Dual Port (USB & Type C) Wall Charger
Original price was: ₹899.00.₹549.00Current price is: ₹549.00.Save ₹350.00 (39%)
Add to cart Buy Now🎛 Technical Overview
Specification Details Output Power Total 25 W Ports USB‑A QC 3.0 + USB‑C PD 2.0 Input Voltage 100–240 V AC (50/60 Hz) Protections Over‑current/voltage, Over‑temperature, Short‑circuit Dimensions Compact, pocket-sized Certifications QC 3.0, PD 2.0 Warranty 3 months, varies by region
Product Enquiry
Related products
-
29% OFF
2SC5200 NPN Power Amplifier Transistor 230V 15A
Original price was: ₹210.00.₹150.00Current price is: ₹150.00.Save ₹60.00 (29%)
Add to cart Buy NowDetailed Specifications:-
Transistor Polarity NPN Collector-Base Voltage (VCBO) 230V Collector-Emitter Voltage (VCEO) 230V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 15A Base Current (IB) 1.5A Transition Frequency (fT) 30MHz DC Current Gain (hFE) 55-160 Operating Temperature Range -55 – 150°C Power Dissipation (PD) 150W -
30% OFF

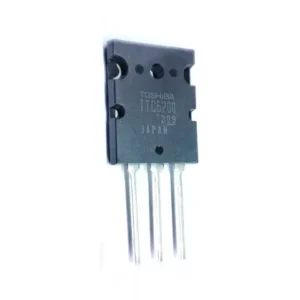

TTC5200 Toshiba Original Audio Power Transistor
